A Complete Guide to PET Preform Injection Moulding Process Parameters Optimization

Introduction

PET preforms are the foundation of high-quality PET bottles used in water, beverage, edible oil, pharmaceutical and cosmetic packaging industries. The performance of a PET preform depends not only on the mould design but also on the optimization of injection moulding process parameters.

At DEBODI Mould, we have years of experience manufacturing precision PET preform moulds. We understand that even a high-quality mould requires optimized processing conditions to achieve maximum productivity and superior preform quality.

Main PET Preform Injection Moulding Parameters

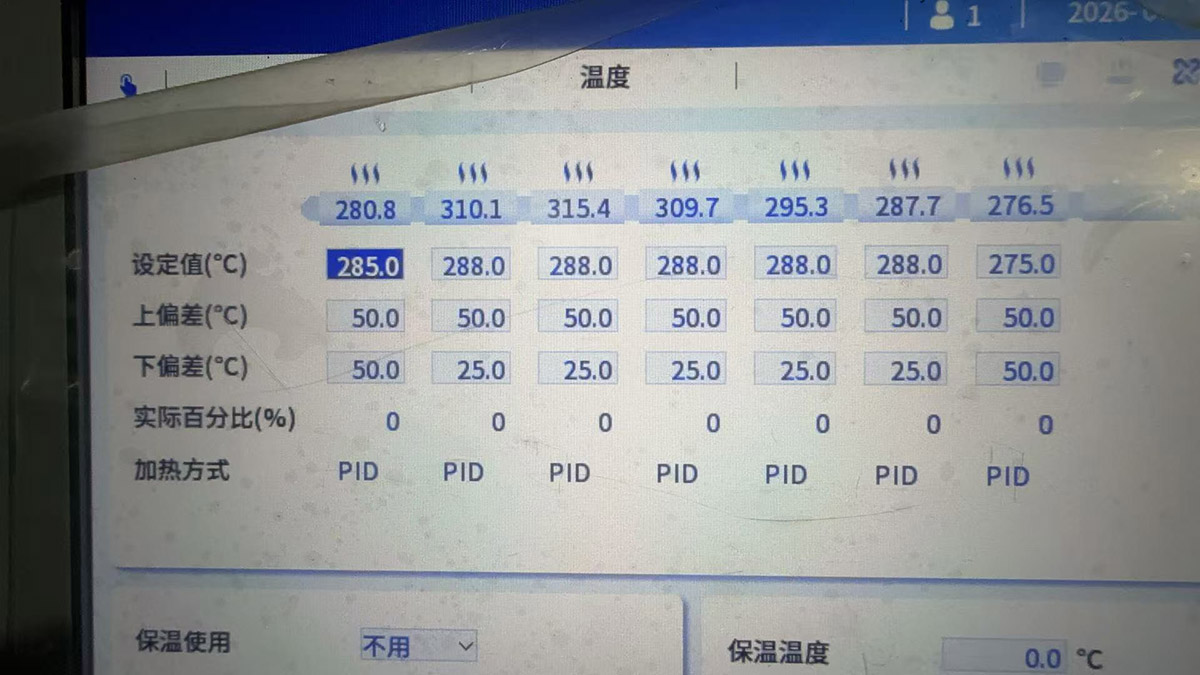

1. Melt Temperature Optimization

Melt temperature directly affects the flowability and quality of PET resin during the injection process.

Temperature Too Low

• Short shots
• Poor cavity filling
• Flow marks
• Reduced transparency

Temperature Too High

• Material degradation
• Yellowing
• Black spots
• Higher acetaldehyde levels

Maintaining a stable melt temperature between 260°C and 290°C is essential for producing high-quality PET preforms.

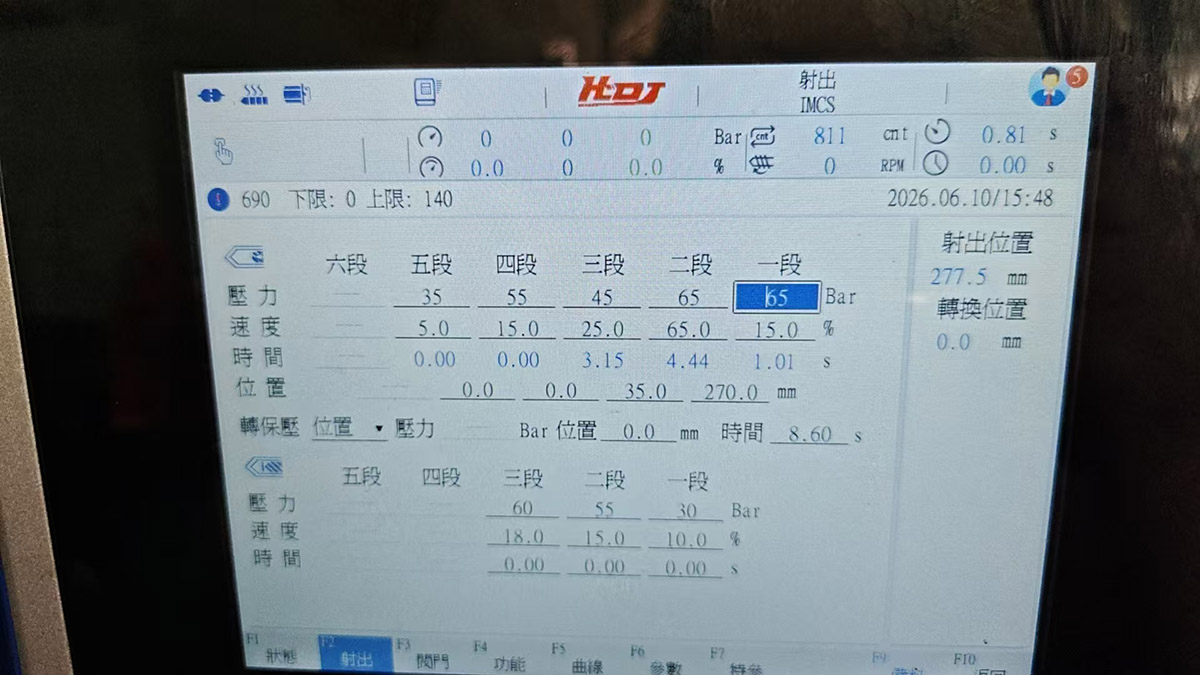

2. Injection Pressure Optimization

Injection pressure determines whether the molten PET can completely fill every cavity. For high-cavity PET preform moulds, pressure balance becomes even more critical.

• Low Pressure → Incomplete filling and sink marks
• High Pressure → Flash and excessive mould wear
• Balanced Pressure → Stable production and dimensional accuracy

3. Injection Speed Optimization

Injection speed significantly influences product appearance and internal stress levels. Modern injection moulding machines often use multi-stage injection speed control.

• Low Speed → Weld lines and poor transparency
• High Speed → Burn marks and material degradation
• Optimized Speed → Smooth filling and better appearance

4. Holding Pressure & Holding Time

Holding pressure compensates for material shrinkage during cooling. Proper holding pressure improves dimensional stability and neck finish accuracy.

• Reduce sink marks
• Improve bottle blowing performance
• Maintain consistent preform weight
• Improve neck precision

5. Cooling System Optimization

Cooling time typically accounts for the largest portion of the injection cycle. Efficient cooling design can significantly increase production capacity.

• Shorter cycle times
• Higher productivity
• Reduced deformation
• Improved dimensional consistency

DEBODI Mould designs advanced cooling channels to maximize heat transfer efficiency and support high-speed production.

6. PET Resin Drying Parameters

PET resin is highly hygroscopic and must be properly dried before processing. Insufficient drying causes hydrolysis and quality problems.

Common PET Preform Defects & Solutions

Why Choose DEBODI Mould?

Conclusion

Optimizing PET preform injection moulding parameters is essential for achieving superior product quality and production efficiency. From melt temperature and injection pressure to cooling performance and drying conditions, every parameter plays a critical role in successful PET preform production.

By combining optimized processing technology with high-quality PET preform moulds from DEBODI Mould, manufacturers can achieve consistent production, lower costs and better bottle performance.
