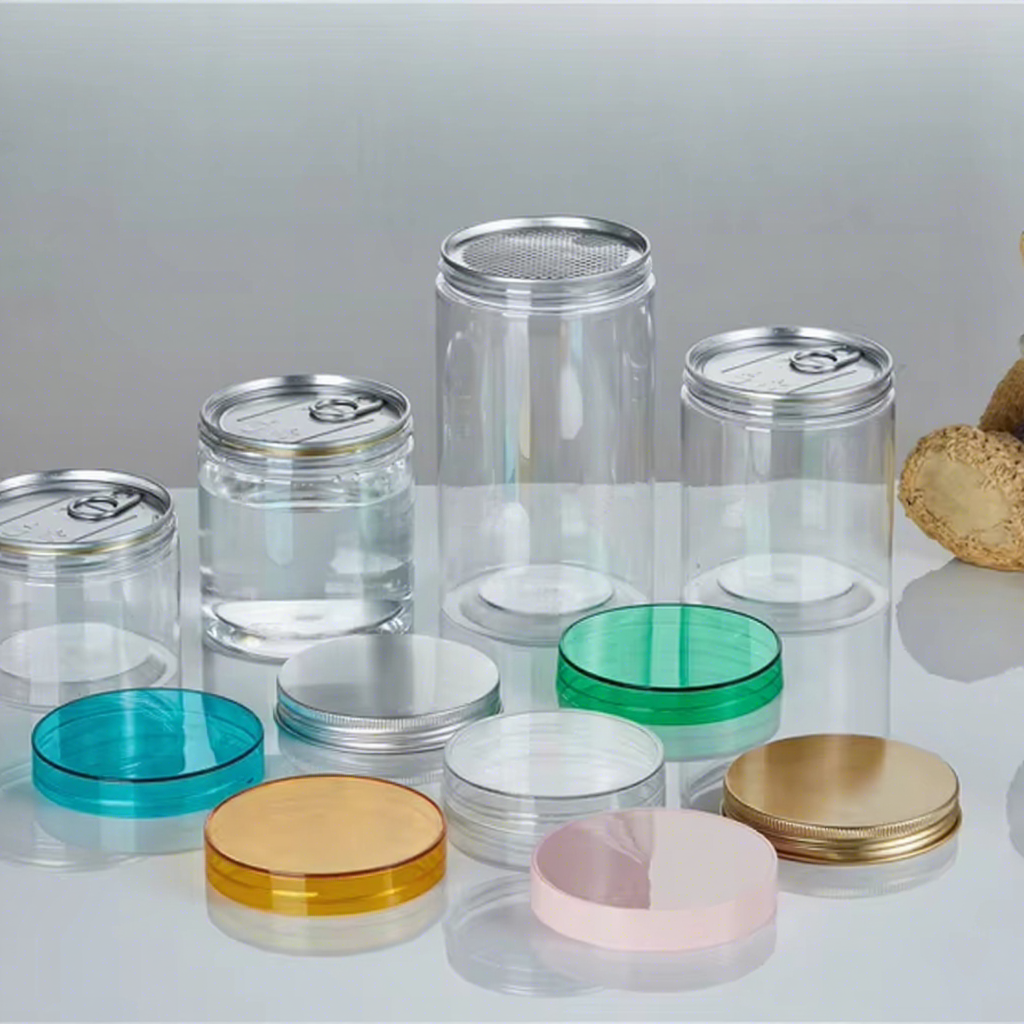

DEBODI MOULD presents a high-performance 20 cavity wide mouth PET preform mould specifically engineered for jar applications – including food jars, supplement containers, cosmetic pots, and other wide-neck packaging.
Compared with standard narrow-neck preform moulds, this jar mould features an enlarged neck finish diameter (typically 38mm to 120mm), allowing easier filling, scooping, and de-molding. The 20-cavity configuration offers an ideal balance between high output and manageable mould footprint, making it suitable for medium-to-large injection molding machines.

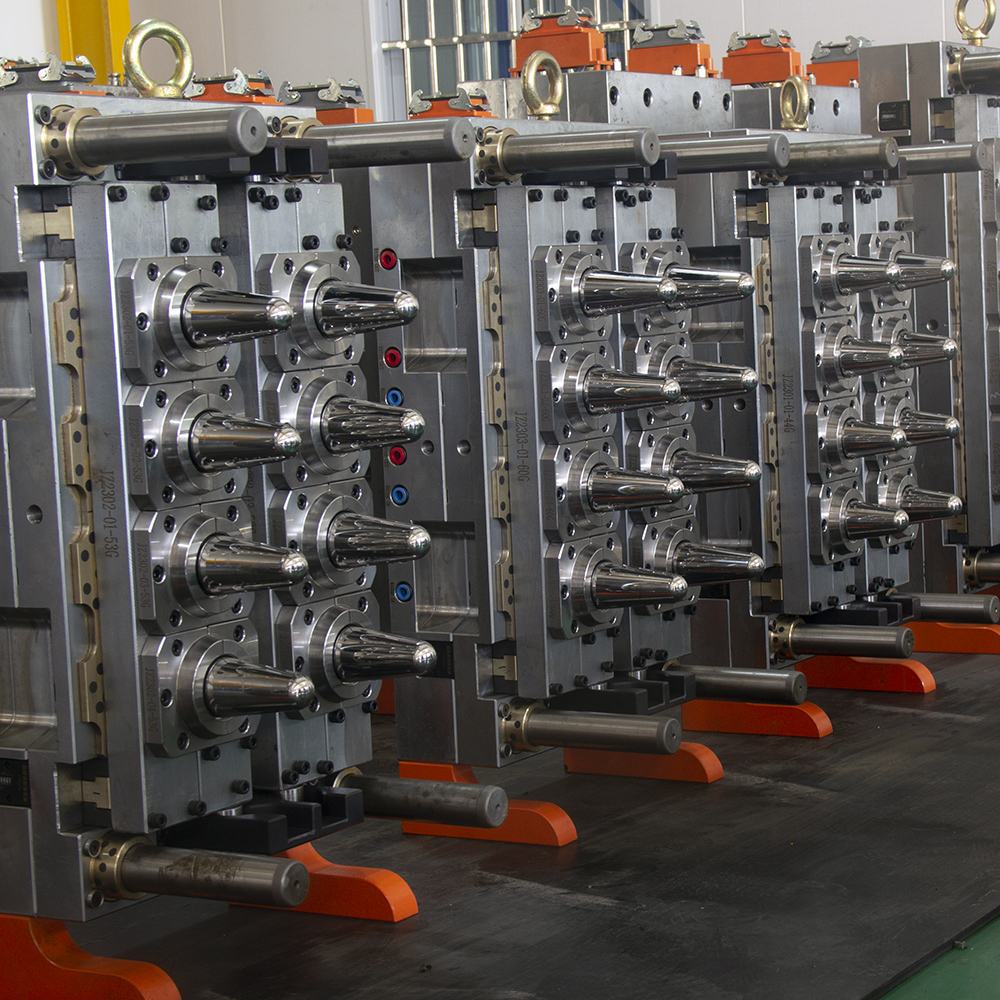

Each mould is precision machined from premium tool steel, heat-treated for extended service life, and equipped with an advanced cooling system to reduce cycle time while maintaining preform dimensional accuracy and thread integrity.
Technical Specifications & Advantages (Table)
| Specification | Details |
|---|---|
| Cavity Number | 20 cavities |
| Product Type | Jar preform / Wide mouth preform |
| Neck Diameter Range | 38mm – 120mm (customizable) |
| Preform Weight Range | 15g – 120g (depending on neck finish & length) |
| Mould Material | S136, 2316, or P20 / H13 stainless/alloy tool steel |
| Core & Cavity Hardness | HRC 48–52 (vacuum heat treated) |
| Gate Type | Hot runner valve gate (individual cavity control) |
| Cooling System | Spiral cooling + baffle cooling + high-flow water channels |
| Surface Finish | Ra ≤ 0.025μm (mirror polish for easy release) |
| Mould Life | 5+ million shots |
| Compatible Machine | PET injection molding machine, 250T – 400T clamp force |
| Lead Time | 30–40 days |
| Warranty | 2 years |
Why Choose DEBODI MOULD for Your 20-Cavity Jar Mould?
Jar-Optimized Design – Wide neck geometry ensures fast preform ejection and consistent wall thickness.
Faster Cycle Time – High-efficiency cooling reduces cycle time by 20–30% vs standard designs.
Precise Thread Sealing – Leak-proof thread profile for twist-off or press-on jar lids.
Interchangeable Cavities – Easily switch between different jar neck sizes with modular inserts.
100% Pre-shipment Testing – Each mould is trialed with PET resin on our own injection machines.
How to Order • Easy & Reliable
Tailored preform molding solutions — from inquiry to delivery, every step is transparent and professional
Consult & Requirements
Share preform specs, cavity count, material (PET/PP) & output targets. Our engineers design the optimal solution.
Quote & Design Approval
Detailed quotation, mold drawings & tech parameters within 24h. Both parties confirm before production.
Manufacturing & QC
Precision machining, heat treatment, mirror polishing — fully compliant with ISO 9001 standards.
Delivery & After-Sales
Worldwide sea/air freight, trial support, spare parts and lifelong technical assistance.
| Mold Type | Cavities | Neck Finish | Preform Weight Range | Material | Lead Time (Days) |
|---|---|---|---|---|---|
| PET Water Preform Mold | 32 / 48 / 72 | 30/25 PCO 1881 | 12g - 38g | PET / rPET | 35-45 |
| Hot Runner Preform Mold | 24 / 36 / 64 | 38mm / 45mm | 18g - 72g | PET / PP | 40-50 |
| Oil Bottle / Wide Mouth Preform Mold | 16 / 24 / 32 | 38mm thread / 48mm | 28g - 95g | PET / HDPE | 38-48 |
| High-Speed Thin-Wall Preform Mold | 48 / 72 / 96 | Crystallized / Non-crystallized | 8g - 22g | PP / PET | 45-55 |
| Carbonated Beverage Preform Mold | 32 / 48 | PCO 28mm / 29/25 | 20g - 44g | PET (high crystallinity) | 40-48 |
| Two-Stage Injection Preform Mold | 48 / 72 / 96 | custom neck sizes | 14g - 60g | PET / RPET | 42-52 |
| Heat-set Preform Mold (hot fill) | 24 / 32 / 48 | 38mm / 43mm | 24g - 85g | PET (heat stable) | 45-55 |
| Cosmetic / Thick-wall Preform Mold | 16 / 24 | 20mm / 24mm / 28mm | 8g - 30g | PET / PCTA | 35-42 |
