DEBODI MOULD offers a high-performance 48 cavity PET preform mould engineered for reliable and cost-effective bottle preform production. This balanced hot runner mold delivers consistent preform quality from 5g to 25g with optimized cycle times. An ideal solution for mid-to-high volume manufacturers seeking lower initial investment compared to 64 or 72 cavity molds while maintaining excellent output efficiency. Compatible with Husky, Netstal, Engel, Haitian and all standard injection molding machines. Factory price, quick lead time, and full technical support from DEBODI MOULD.

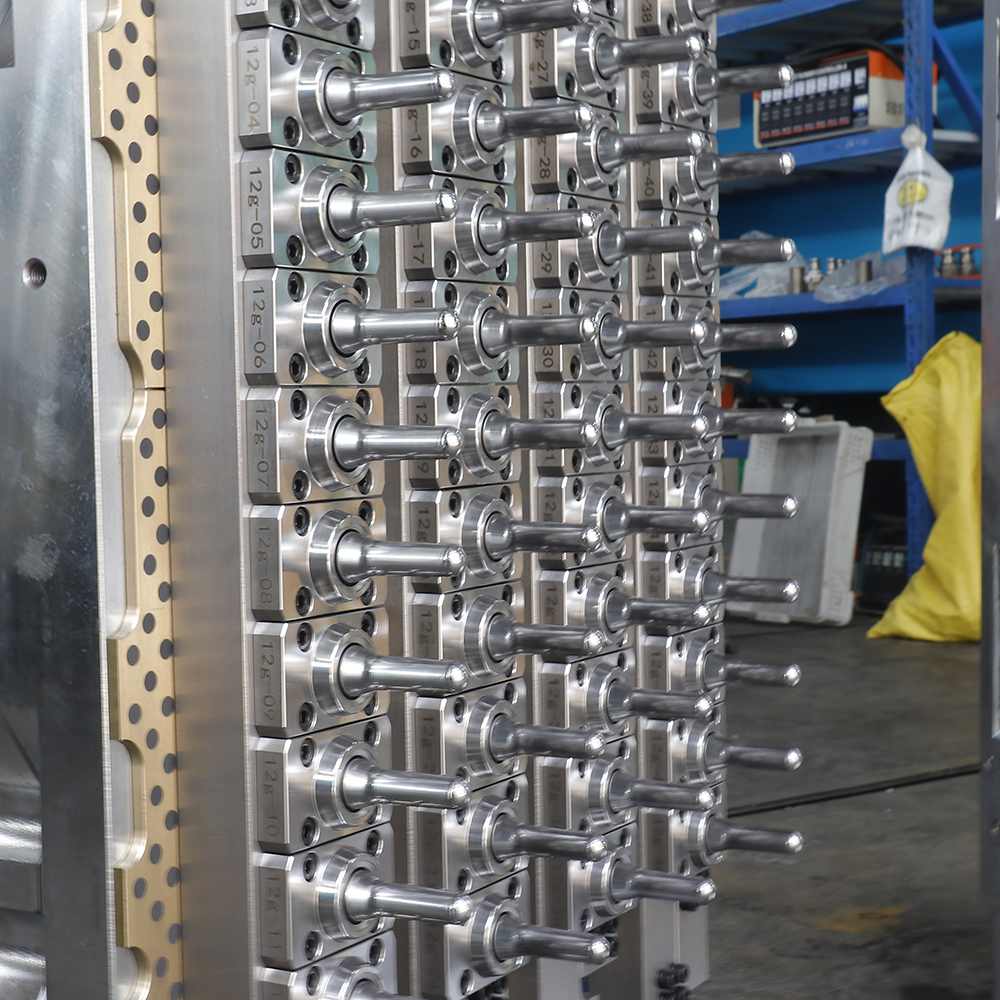

The DEBODI MOULD 48 cavity PET preform mould is designed for manufacturers who need a balance between high output and moderate capital investment. With 48 cavities per cycle, this mold provides substantial daily production capacity while offering easier maintenance and faster changeover compared to higher-cavity molds. Each mold is precision-engineered with a fully balanced hot runner system and efficient conformal cooling to ensure uniform preform quality across all cavities.
Why Choose 48 Cavities?
For many mid-sized bottle producers, a 48 cavity preform mold represents the sweet spot. It offers significantly higher output than 32 or 24 cavity molds but requires a smaller injection molding machine and lower tooling investment than 64 or 72 cavity systems. This makes it an ideal choice for companies scaling up production without committing to the largest machine platforms.
Key Engineering Features
Balanced Hot Runner System: Precision valve gate design with symmetrical flow paths ensures identical filling, packing, and cooling across all 48 cavities, resulting in consistent preform weight and dimensions.
Efficient Conformal Cooling: Strategically designed cooling channels on cores and cavities minimize cycle times while preventing warpage or sink marks, even for thicker preform designs.

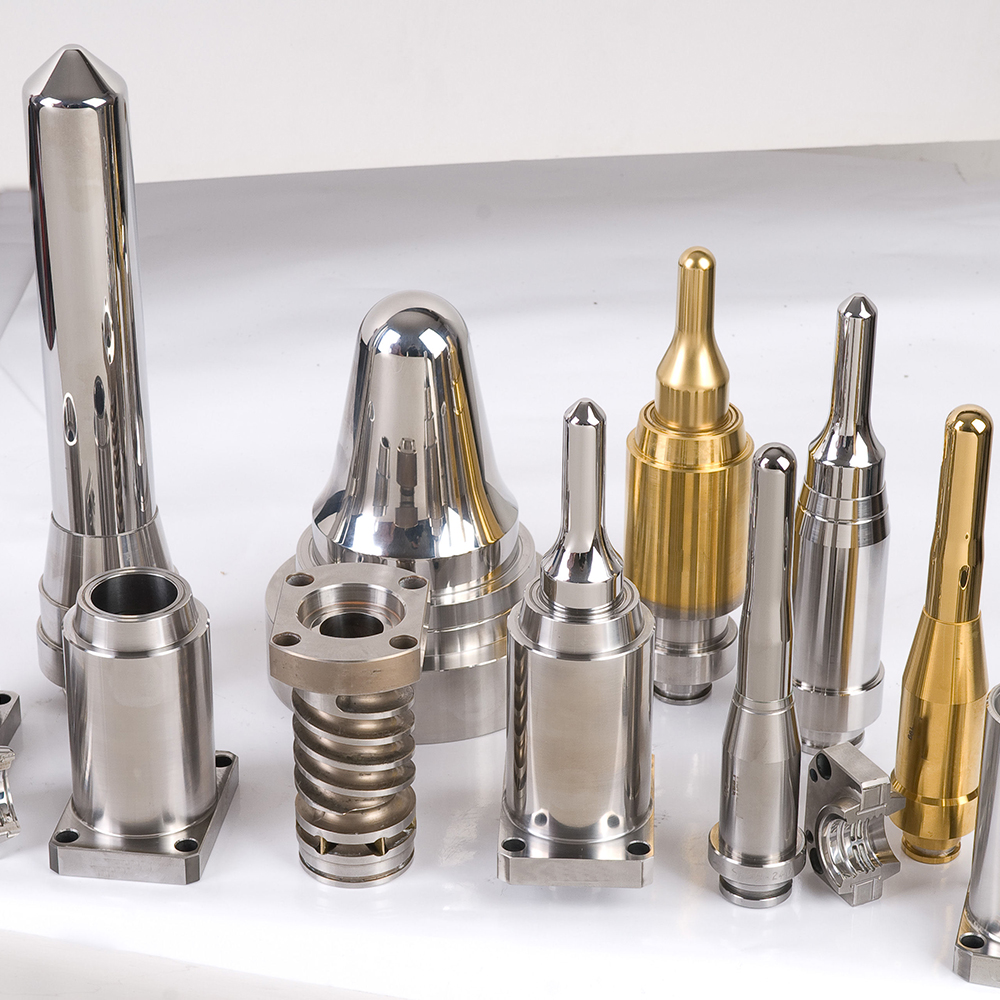

Durable Construction: Manufactured from premium DIN 1.2316 / 1.2343 stainless steel with hard chromium plating on cores and cavities for excellent wear resistance and easy part release.
Universal Compatibility: Standard mounting dimensions and nozzle spacing allow easy installation on most injection molding machines from Husky, Netstal, Engel, Sumitomo, Haitian, Chen Hsong, and others.
Flexible Customization: Available with various neck finishes (PCO 1881, ALKO, Sidel, ASB) and preform weight ranges (5g–25g) to suit water, juice, edible oil, and carbonated soft drink applications.
Quality Assurance
Each 48 cavity PET preform mould undergoes CMM dimensional inspection, pressure testing, and trial molding before shipment. We provide complete documentation including spare parts list, maintenance manual, and 12-month warranty with after-sales technical support.
(Manufacturing Specifications & Advantages Table)
| Parameter | Specification | Advantage |
|---|---|---|
| Number of Cavities | 48 cavities | Optimal balance of output vs. investment cost |
| Preform Weight Range | 5g – 25g | Suitable for 0.3L to 3L bottles |
| Neck Finish Options | PCO 1881, ALKO, Sidel, ASB, customized | Compatible with major capping & filling lines |
| Hot Runner System | Valve gate, fully balanced 48-drop design | Low AA value, consistent filling across all cavities |
| Mold Steel Type | DIN 1.2316 / 1.2343 (stainless tool steel) | High wear resistance, corrosion protection |
| Surface Treatment | Hard chromium plating (core & cavity) | Easy part release, extended mold life |
| Cooling System | Conformal cooling on cores & cavities | Cycle time 9–12 seconds typical |
| Injection Machine Compatibility | Husky, Netstal, Engel, Sumitomo, Haitian, Chen Hsong | Universal platens, flexible machine options |
| Minimum Clamp Force Required | 350–450 tons (depends on preform design) | Compatible with mid-sized injection machines |
| Quality Control | 100% inspection + CMM report + trial molding | Dimensional accuracy, ready-to-run |
| Warranty & Support | 12 months / 1 million shots minimum | Reliable after-sales service |
How to Order • Easy & Reliable
Tailored preform molding solutions — from inquiry to delivery, every step is transparent and professional
Consult & Requirements
Share preform specs, cavity count, material (PET/PP) & output targets. Our engineers design the optimal solution.
Quote & Design Approval
Detailed quotation, mold drawings & tech parameters within 24h. Both parties confirm before production.
Manufacturing & QC
Precision machining, heat treatment, mirror polishing — fully compliant with ISO 9001 standards.
Delivery & After-Sales
Worldwide sea/air freight, trial support, spare parts and lifelong technical assistance.
| Mold Type | Cavities | Neck Finish | Preform Weight Range | Material | Lead Time (Days) |
|---|---|---|---|---|---|
| PET Water Preform Mold | 32 / 48 / 72 | 30/25 PCO 1881 | 12g - 38g | PET / rPET | 35-45 |
| Hot Runner Preform Mold | 24 / 36 / 64 | 38mm / 45mm | 18g - 72g | PET / PP | 40-50 |
| Oil Bottle / Wide Mouth Preform Mold | 16 / 24 / 32 | 38mm thread / 48mm | 28g - 95g | PET / HDPE | 38-48 |
| High-Speed Thin-Wall Preform Mold | 48 / 72 / 96 | Crystallized / Non-crystallized | 8g - 22g | PP / PET | 45-55 |
| Carbonated Beverage Preform Mold | 32 / 48 | PCO 28mm / 29/25 | 20g - 44g | PET (high crystallinity) | 40-48 |
| Two-Stage Injection Preform Mold | 48 / 72 / 96 | custom neck sizes | 14g - 60g | PET / RPET | 42-52 |
| Heat-set Preform Mold (hot fill) | 24 / 32 / 48 | 38mm / 43mm | 24g - 85g | PET (heat stable) | 45-55 |
| Cosmetic / Thick-wall Preform Mold | 16 / 24 | 20mm / 24mm / 28mm | 8g - 30g | PET / PCTA | 35-42 |
