DEBODI MOULD offers an affordable and reliable 24 cavity PET preform mould designed for small-scale production, pilot lines, and startup operations. This compact hot runner mold delivers consistent preform quality from 5g to 15g with minimal capital investment and lower machine clamp force requirements. An ideal solution for bottle manufacturers entering the PET market, R&D testing, or specialty small-batch production. Compatible with Husky, Netstal, Engel, Haitian, Chen Hsong, and most standard injection molding machines. Fast lead time, competitive pricing, and full technical support from DEBODI MOULD.

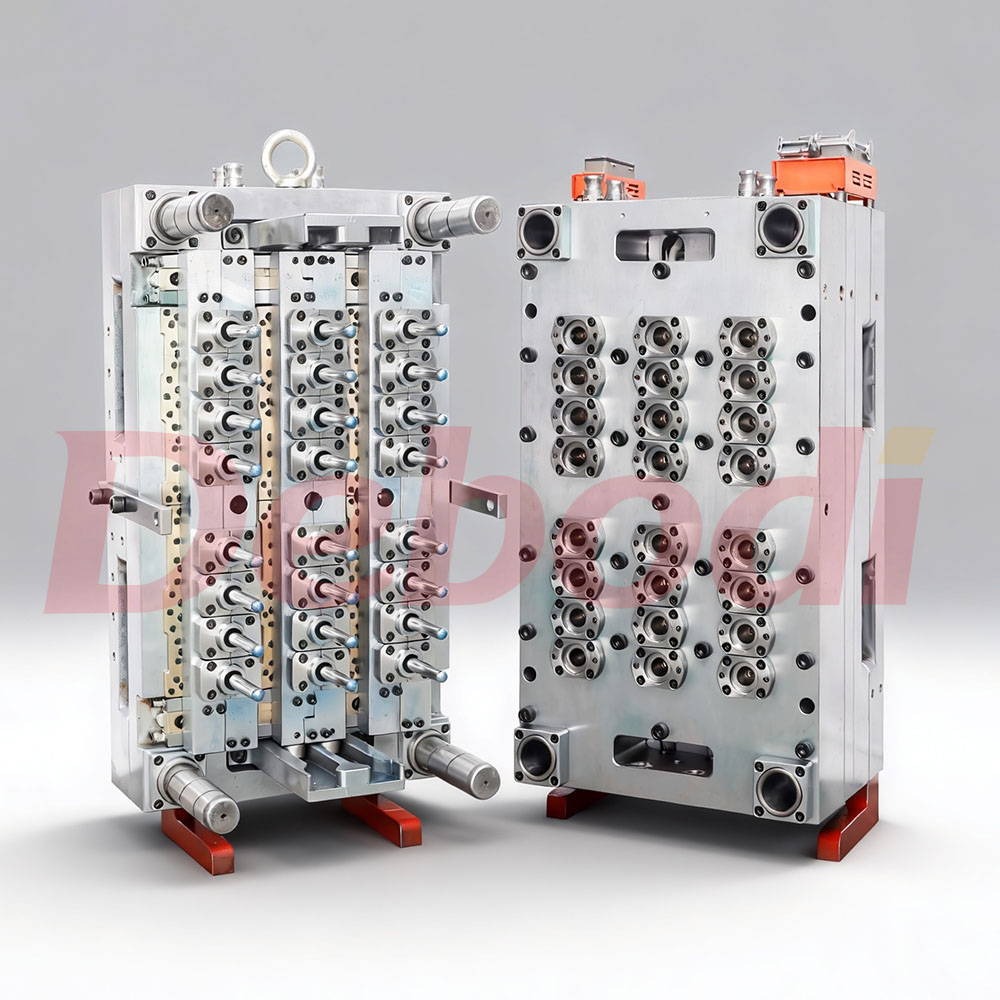

The DEBODI MOULD 24 cavity PET preform mould is specifically engineered for manufacturers who are beginning PET bottle preform production or require a flexible solution for small-batch runs. With 24 cavities per cycle, this mold offers the most accessible entry point into PET preform manufacturing, requiring lower initial investment and smaller injection molding machines compared to higher-cavity molds.
Why Choose 24 Cavities?
For startups, research institutions, or companies testing new bottle designs, a 24 cavity preform mold is the perfect choice. It provides several distinct advantages:
Lowest Capital Investment: Most affordable tooling option among DEBODI MOULD's preform mold range.
Smaller Machine Requirement: Compatible with injection molding machines from 180–250 tons clamp force.
Ideal for Pilot Production: Perfect for market testing, new product development, or seasonal bottle runs.
Simplified Maintenance: Fewer cavities means easier cleaning, faster changeover, and lower spare parts costs.
Quick Changeover: Ideal for manufacturers producing multiple preform designs on the same machine.
Key Engineering Features
Compact Hot Runner System: Precision valve gate design optimized for 24 cavities ensures balanced melt distribution and consistent preform quality. Simpler design means easier operation and maintenance.
Efficient Cooling Design: Well-engineered conformal cooling channels on cores and cavities provide effective heat extraction with typical cycle times of 10–14 seconds.
Durable Construction: Manufactured from premium DIN 1.2316 / 1.2343 stainless steel with hard chromium plating on cores and cavities for wear resistance and easy part release.
Wide Machine Compatibility: Standard mounting dimensions and lower clamp force requirements (180–250 tons) allow installation on most popular injection molding machines.

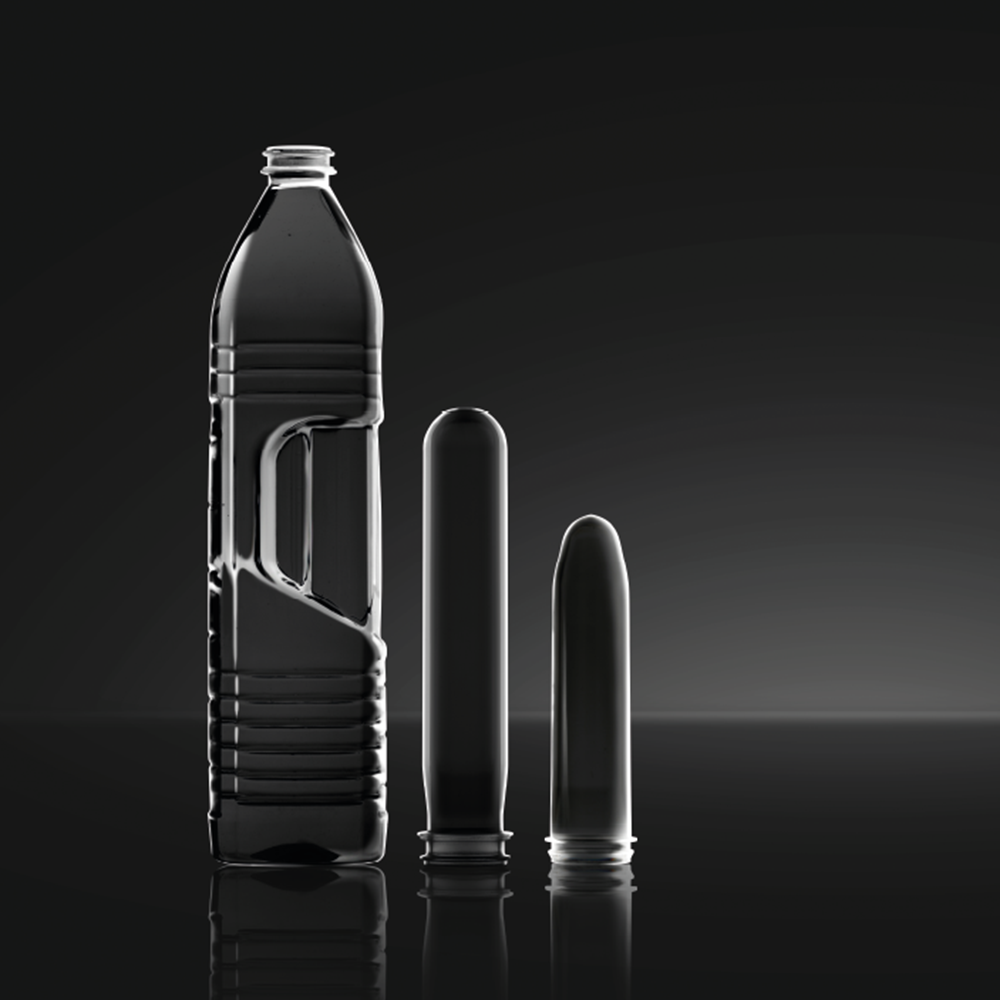

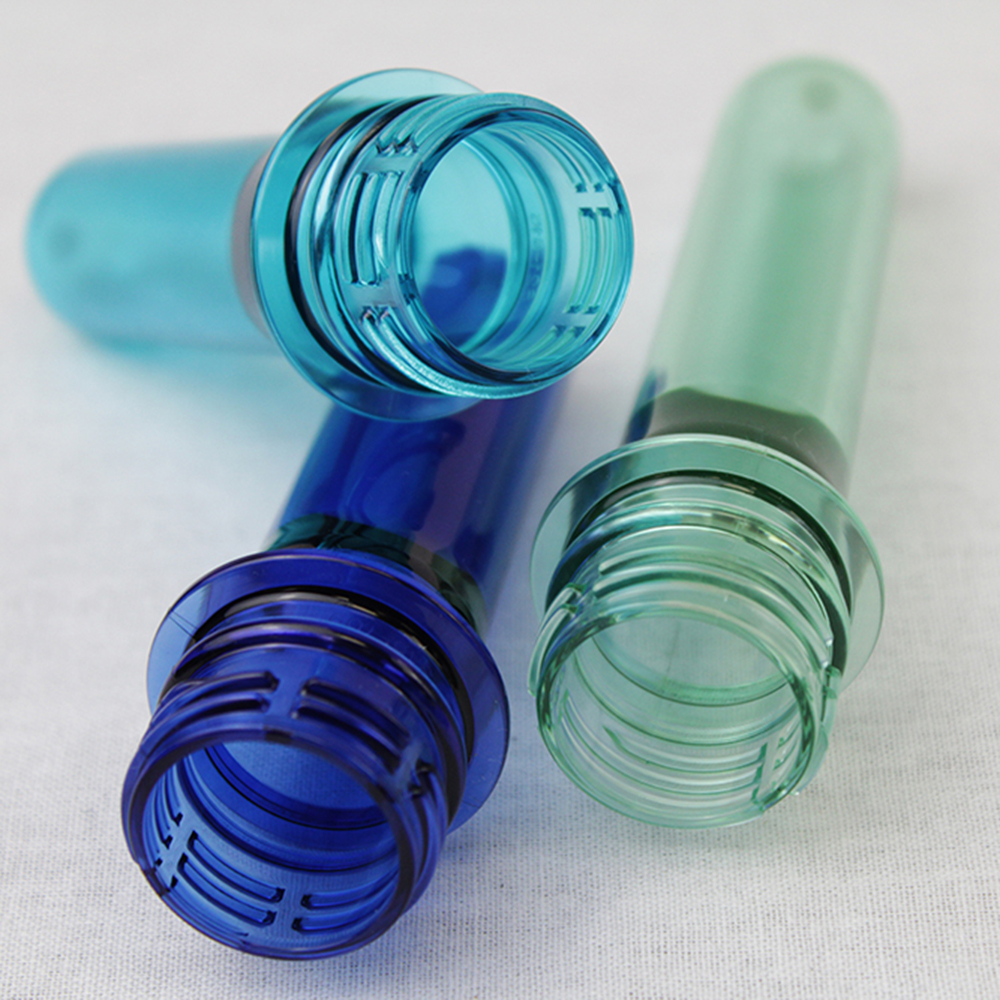

Flexible Customization: Available with various neck finishes including PCO 1881, ALKO, Sidel, ASB, and customized designs. Preform weight range from 5g to 15g suits small water bottles, juice shots, and specialty containers.
Quality Assurance
Each 24 cavity PET preform mould undergoes CMM dimensional inspection, pressure testing, and trial molding before shipment. We provide complete documentation including spare parts list, maintenance manual, and 12-month warranty with after-sales technical support.
(Manufacturing Specifications & Advantages Table)
| Parameter | Specification | Advantage |
|---|---|---|
| Number of Cavities | 24 cavities | Lowest investment, simplest maintenance, ideal for entry-level |
| Preform Weight Range | 5g – 15g | Suitable for 0.15L to 1.5L bottles |
| Neck Finish Options | PCO 1881, ALKO, Sidel, ASB, customized | Compatible with global capping & filling standards |
| Hot Runner System | Valve gate, 24-drop balanced design | Low AA value, consistent filling, easier operation |
| Mold Steel Type | DIN 1.2316 / 1.2343 (stainless tool steel) | High wear resistance, corrosion protection |
| Surface Treatment | Hard chromium plating (core & cavity) | Easy part release, extended mold life |
| Cooling System | Conformal cooling on cores & cavities | Cycle time 10–14 seconds typical |
| Injection Machine Compatibility | Husky, Netstal, Engel, Sumitomo, Haitian, Chen Hsong | Compatible with smaller, affordable machines |
| Minimum Clamp Force Required | 180–250 tons (depends on preform design) | Fits small to mid-sized machines, lowest energy cost |
| Mold Dimensions (approx.) | 500 x 450 x 400 mm (compact design) | Easy handling, fits smaller machine platens |
| Daily Output Estimate | 12,000–20,000 preforms/day (depending on cycle time) | Sufficient for regional or specialty markets |
| Quality Control | 100% inspection + CMM report + trial molding | Dimensional accuracy, ready-to-run |
| Warranty & Support | 12 months / 1 million shots minimum | Reliable after-sales service, spare parts available |
| Typical Lead Time | 25–35 days | Fastest delivery in DEBODI range |
How to Order • Easy & Reliable
Tailored preform molding solutions — from inquiry to delivery, every step is transparent and professional
Consult & Requirements
Share preform specs, cavity count, material (PET/PP) & output targets. Our engineers design the optimal solution.
Quote & Design Approval
Detailed quotation, mold drawings & tech parameters within 24h. Both parties confirm before production.
Manufacturing & QC
Precision machining, heat treatment, mirror polishing — fully compliant with ISO 9001 standards.
Delivery & After-Sales
Worldwide sea/air freight, trial support, spare parts and lifelong technical assistance.
| Mold Type | Cavities | Neck Finish | Preform Weight Range | Material | Lead Time (Days) |
|---|---|---|---|---|---|
| PET Water Preform Mold | 32 / 48 / 72 | 30/25 PCO 1881 | 12g - 38g | PET / rPET | 35-45 |
| Hot Runner Preform Mold | 24 / 36 / 64 | 38mm / 45mm | 18g - 72g | PET / PP | 40-50 |
| Oil Bottle / Wide Mouth Preform Mold | 16 / 24 / 32 | 38mm thread / 48mm | 28g - 95g | PET / HDPE | 38-48 |
| High-Speed Thin-Wall Preform Mold | 48 / 72 / 96 | Crystallized / Non-crystallized | 8g - 22g | PP / PET | 45-55 |
| Carbonated Beverage Preform Mold | 32 / 48 | PCO 28mm / 29/25 | 20g - 44g | PET (high crystallinity) | 40-48 |
| Two-Stage Injection Preform Mold | 48 / 72 / 96 | custom neck sizes | 14g - 60g | PET / RPET | 42-52 |
| Heat-set Preform Mold (hot fill) | 24 / 32 / 48 | 38mm / 43mm | 24g - 85g | PET (heat stable) | 45-55 |
| Cosmetic / Thick-wall Preform Mold | 16 / 24 | 20mm / 24mm / 28mm | 8g - 30g | PET / PCTA | 35-42 |
