DEBODI MOULD is a professional manufacturer of PET preform moulds in China, specializing in high-performance wide mouth PET preform moulds for jar packaging applications. Our 24 cavity wide mouth PET preform mould is designed for stable mass production, fast cycle times, and long service life, making it ideal for food, candy, nuts, protein powder, cosmetics, and pharmaceutical packaging industries.
Product Features
- 24-cavity high output design for efficient production

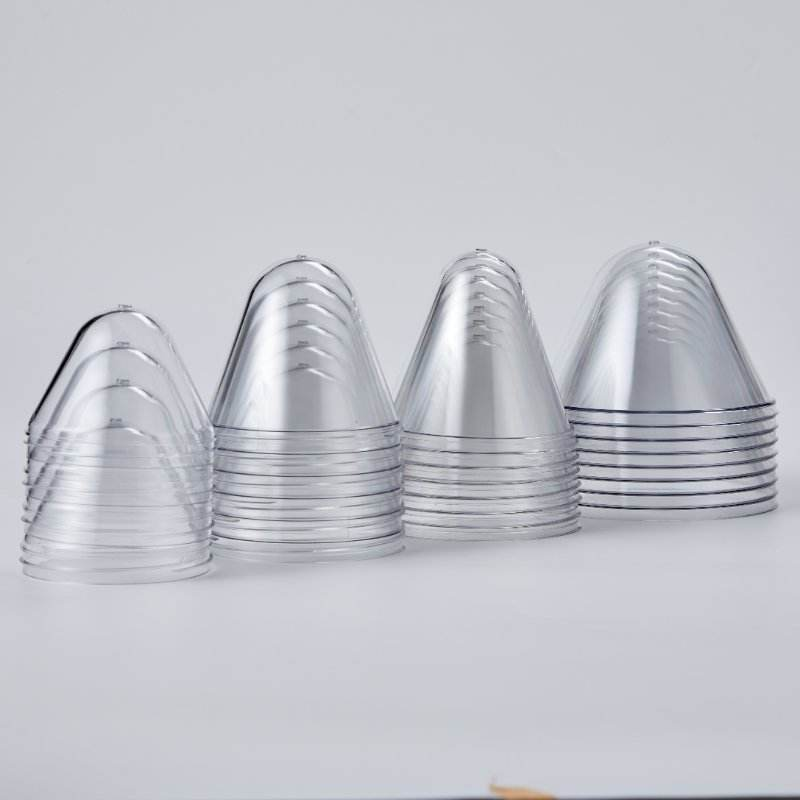

- Suitable for wide mouth PET jar preforms
- High precision CNC machining for excellent mould accuracy
- Advanced hot runner system for stable injection performance
- Fast cooling structure to reduce cycle time
- Interchangeable mould components for easier maintenance
- Long mould lifespan with premium stainless steel materials
- Compatible with major injection molding machine brands
- Excellent transparency and consistency of PET preforms
Applications
This wide mouth PET preform mould is widely used for manufacturing:
- Candy jars
- Food storage containers
- Peanut butter jars
- Protein powder containers
- Cosmetic jars
- Pharmaceutical packaging jars

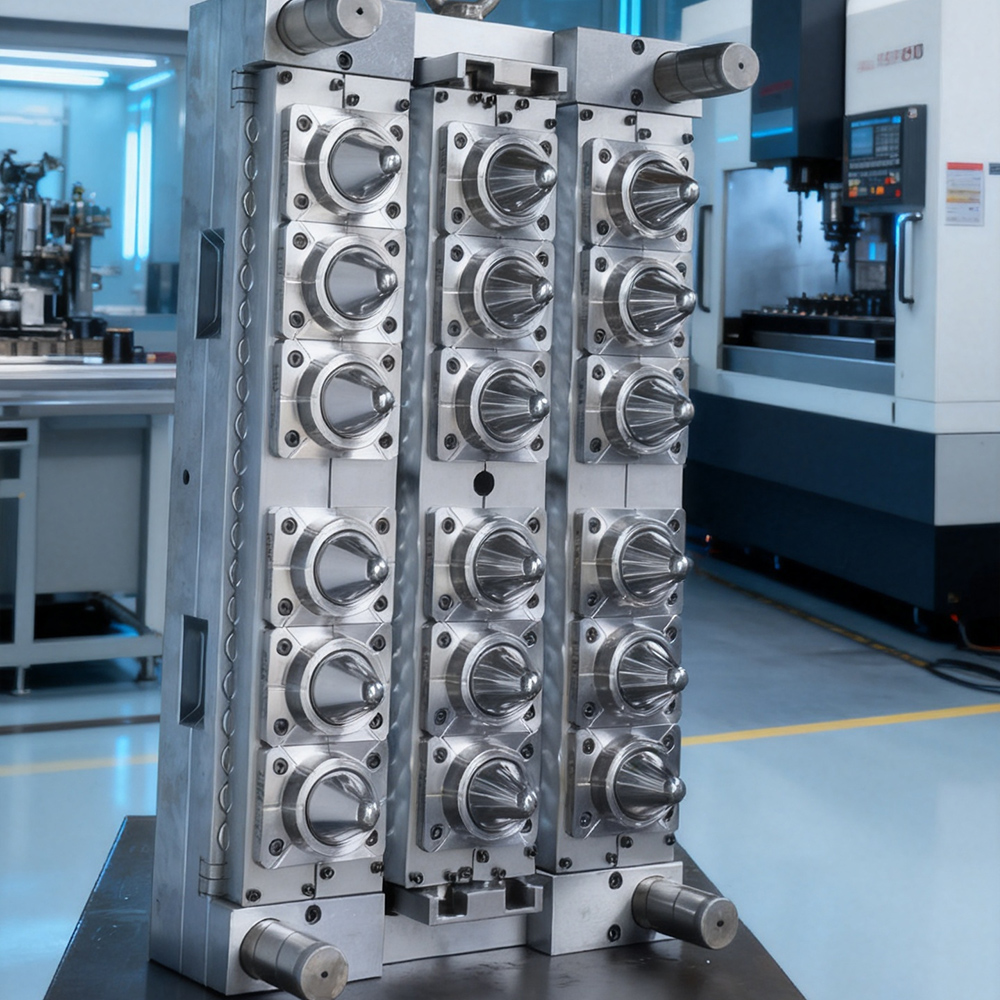

DEBODI MOULD presents a high-efficiency 24 cavity wide mouth PET preform mould specifically designed for jar applications – including food jars, supplement bottles, cosmetic containers, and other wide-neck packaging.
Compared with the 20-cavity version, the 24-cavity jar mould delivers 20% higher output per cycle, making it the ideal choice for mass production of jar preforms. The wide neck design (38mm – 120mm) ensures easy de-molding, faster cooling, and excellent preform quality for large-diameter containers.
Each mould is precision machined from premium tool steel, heat-treated for extended service life, and equipped with an advanced hot runner valve gate system for precise cavity filling and reduced material waste.
Technical Specifications & Advantages (Table)
| Specification | Details |
|---|---|
| Cavity Number | 24 cavities |
| Product Type | Jar preform / Wide mouth preform |
| Neck Diameter Range | 38mm – 120mm (customizable) |
| Preform Weight Range | 15g – 100g (depending on neck finish & length) |
| Mould Material | S136, 2316, or P20 / H13 stainless/alloy tool steel |
| Core & Cavity Hardness | HRC 48–52 (vacuum heat treated) |
| Gate Type | Hot runner valve gate (individual cavity control) |
| Cooling System | Spiral cooling + baffle cooling + high-flow water channels |
| Surface Finish | Ra ≤ 0.025μm (mirror polish) |
| Mould Life | 5+ million shots |
| Compatible Machine | PET injection molding machine, 350T – 500T clamp force |
| Lead Time | 35–45 days |
| Warranty | 2 years |
Why Choose DEBODI MOULD's 24-Cavity Jar Mould?
| Advantage | Benefit |
|---|---|
| Higher Output | 24 cavities vs 20 cavities = 20% more preforms per cycle |
| Jar-Optimized Geometry | Wide mouth design ensures easy ejection and consistent wall thickness |
| Faster Cooling | Advanced spiral + baffle cooling reduces cycle time by 25–30% |
| Precise Thread Sealing | Leak-proof thread profile for jar lids (twist-off or press-on) |
| Modular Cavity Design | Quick change between different jar neck sizes |
| 100% Pre-shipment Testing | Each mould tested with PET resin before delivery |
Comparison: 20-Cavity vs 24-Cavity Jar Mould
| Feature | 20 Cavity | 24 Cavity |
|---|---|---|
| Output per cycle | 20 preforms | 24 preforms (+20%) |
| Min. machine clamp force | 250T | 350T |
| Mould footprint | Smaller | Larger |
| Best for | Medium production | High-volume mass production |
| Lead time | 30–40 days | 35–45 days |
How to Order • Easy & Reliable
Tailored preform molding solutions — from inquiry to delivery, every step is transparent and professional
Consult & Requirements
Share preform specs, cavity count, material (PET/PP) & output targets. Our engineers design the optimal solution.
Quote & Design Approval
Detailed quotation, mold drawings & tech parameters within 24h. Both parties confirm before production.
Manufacturing & QC
Precision machining, heat treatment, mirror polishing — fully compliant with ISO 9001 standards.
Delivery & After-Sales
Worldwide sea/air freight, trial support, spare parts and lifelong technical assistance.
| Mold Type | Cavities | Neck Finish | Preform Weight Range | Material | Lead Time (Days) |
|---|---|---|---|---|---|
| PET Water Preform Mold | 32 / 48 / 72 | 30/25 PCO 1881 | 12g - 38g | PET / rPET | 35-45 |
| Hot Runner Preform Mold | 24 / 36 / 64 | 38mm / 45mm | 18g - 72g | PET / PP | 40-50 |
| Oil Bottle / Wide Mouth Preform Mold | 16 / 24 / 32 | 38mm thread / 48mm | 28g - 95g | PET / HDPE | 38-48 |
| High-Speed Thin-Wall Preform Mold | 48 / 72 / 96 | Crystallized / Non-crystallized | 8g - 22g | PP / PET | 45-55 |
| Carbonated Beverage Preform Mold | 32 / 48 | PCO 28mm / 29/25 | 20g - 44g | PET (high crystallinity) | 40-48 |
| Two-Stage Injection Preform Mold | 48 / 72 / 96 | custom neck sizes | 14g - 60g | PET / RPET | 42-52 |
| Heat-set Preform Mold (hot fill) | 24 / 32 / 48 | 38mm / 43mm | 24g - 85g | PET (heat stable) | 45-55 |
| Cosmetic / Thick-wall Preform Mold | 16 / 24 | 20mm / 24mm / 28mm | 8g - 30g | PET / PCTA | 35-42 |
