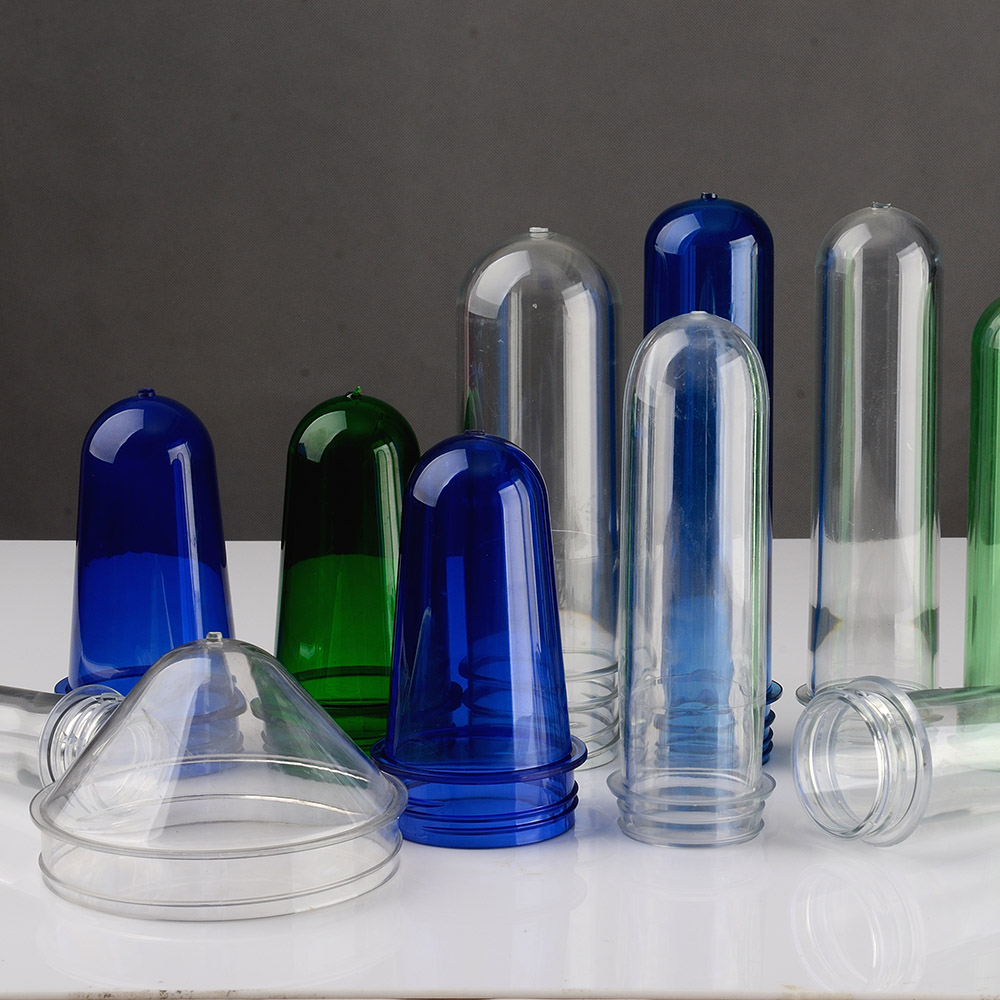

DEBODI MOULD presents a high-performance 24 cavity wide mouth PET preform mould designed for producing large-neck preforms used in wide-mouth jars, food containers, and bulky cosmetic bottles. Compared with standard neck preform moulds, our wide mouth design ensures easier de-molding, better cooling efficiency, and higher output for large diameter applications.
This mould is precision machined and heat-treated to guarantee extended service life, consistent preform weight, and excellent thread finish. Suitable for use on high-speed injection molding machines with hot runner systems.
DEBODI MOULD presents a high-performance 24 cavity wide mouth PET preform mould designed for producing large-neck preforms used in wide-mouth jars, food containers, and bulky cosmetic bottles. Compared with standard neck preform moulds, our wide mouth design ensures easier de-molding, better cooling efficiency, and higher output for large diameter applications.
This mould is precision machined and heat-treated to guarantee extended service life, consistent preform weight, and excellent thread finish. Suitable for use on high-speed injection molding machines with hot runner systems.
Technical Specifications & Advantages (Table)
| Specification | Details |
|---|---|
| Cavity Number | 24 cavities |
| Neck Type | Wide mouth / Broad opening (customizable diameter) |
| Preform Weight Range | 15g – 80g (depending on neck finish) |

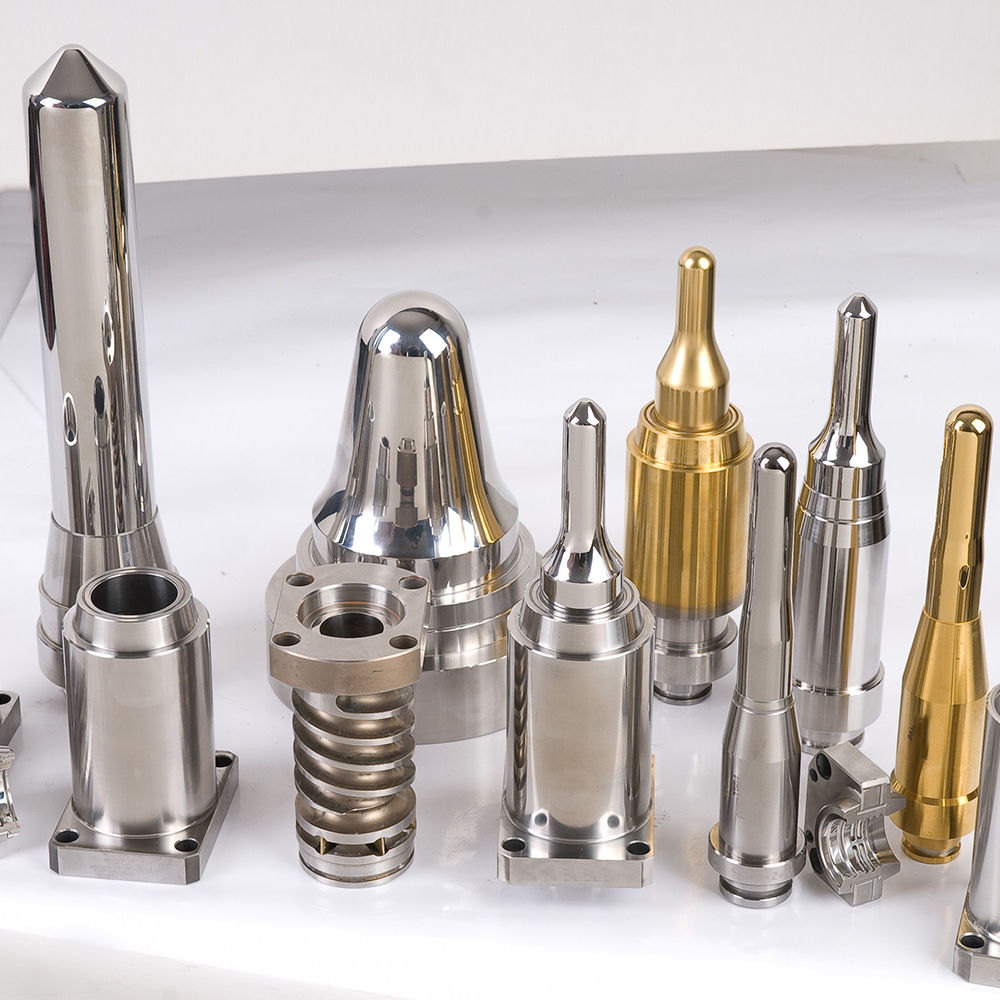

| Mould Material | High-grade stainless steel (S136, 2316) or tool steel (P20, H13) |
| Core & Cavity Hardness | HRC 48–52 (after vacuum heat treatment) |
| Gate Type | Hot runner valve gate or needle gate |
| Cooling System | High-efficiency spiral cooling + baffle cooling on core & cavity |
| Surface Finish | Ra ≤ 0.025μm (mirror polish) |
| Mould Life | 5+ million shots |
| Compatible Machine | PET injection molding machine with 300T – 450T clamp force |
| Lead Time | 30–45 days |
| Warranty | 2 years |
Why Choose DEBODI MOULD for Your Wide Mouth Preform Tooling?
Precision Engineering – CNC machining centers and EDM ensure ±0.005mm tolerance.
Optimized Cooling – Up to 30% shorter cycle time compared to standard designs.
Leak-proof Thread Design – Ensures perfect sealing for food & beverage caps.
Easy Cavity Exchange – Modular design allows fast cavity replacement for different preform weights.
Full Testing – Each mould is tested with actual PET resin before shipment.
How to Order • Easy & Reliable
Tailored preform molding solutions — from inquiry to delivery, every step is transparent and professional
Consult & Requirements
Share preform specs, cavity count, material (PET/PP) & output targets. Our engineers design the optimal solution.
Quote & Design Approval
Detailed quotation, mold drawings & tech parameters within 24h. Both parties confirm before production.
Manufacturing & QC
Precision machining, heat treatment, mirror polishing — fully compliant with ISO 9001 standards.
Delivery & After-Sales
Worldwide sea/air freight, trial support, spare parts and lifelong technical assistance.
| Mold Type | Cavities | Neck Finish | Preform Weight Range | Material | Lead Time (Days) |
|---|---|---|---|---|---|
| PET Water Preform Mold | 32 / 48 / 72 | 30/25 PCO 1881 | 12g - 38g | PET / rPET | 35-45 |
| Hot Runner Preform Mold | 24 / 36 / 64 | 38mm / 45mm | 18g - 72g | PET / PP | 40-50 |
| Oil Bottle / Wide Mouth Preform Mold | 16 / 24 / 32 | 38mm thread / 48mm | 28g - 95g | PET / HDPE | 38-48 |
| High-Speed Thin-Wall Preform Mold | 48 / 72 / 96 | Crystallized / Non-crystallized | 8g - 22g | PP / PET | 45-55 |
| Carbonated Beverage Preform Mold | 32 / 48 | PCO 28mm / 29/25 | 20g - 44g | PET (high crystallinity) | 40-48 |
| Two-Stage Injection Preform Mold | 48 / 72 / 96 | custom neck sizes | 14g - 60g | PET / RPET | 42-52 |
| Heat-set Preform Mold (hot fill) | 24 / 32 / 48 | 38mm / 43mm | 24g - 85g | PET (heat stable) | 45-55 |
| Cosmetic / Thick-wall Preform Mold | 16 / 24 | 20mm / 24mm / 28mm | 8g - 30g | PET / PCTA | 35-42 |
